Nexo wireless tightening machine

Rexroth Nexo is suitable for safety critical applications (according to VDI/VDE 2862) solution and make sure to use a high level of stability of the process be consistent when the greatest degree of freedom! This is the first wireless WiFi nut wrench integrated control system and power electronic equipment. Stable process perform assembly . Integrated controller can be temporarily stored the results and wireless transmitting and receiving station.

-> NXP pistol fastening machine  -> NXA angle tightening machine -> Accessories


■ Rexroth Nexo intelligent wireless make the integration of the wireless technology and applicable to all class A safety critical assembly operations tightening machine reliable Ergo Spin hand-held fastening machine all the advantages,

■ Suitable for The existing infrastructure of any production environment

■ In between the tightening machine and access point to establish direct Wi-Fi connection, without additional controller

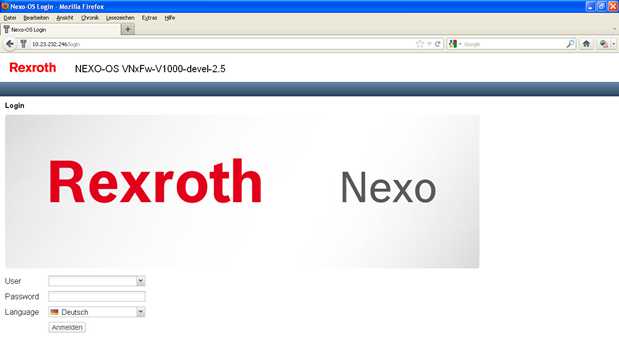

The software design based on Browser-based
■ The operation software is available online through the Internet browser (such as IE, Firefoxetc.) donot use the local installation

■ Set up easily, because there is no need to install additional software

■ In the terminal device independence, flexibility in the use of

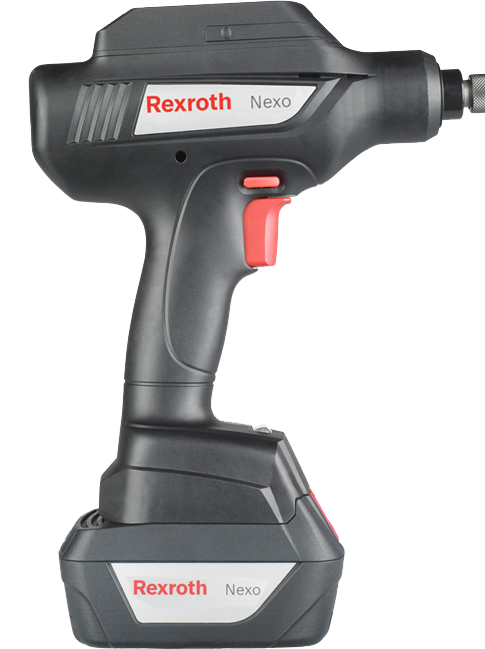

NXP pistol fastening machine
■ No trouble free operation in hard to reach the position of the screw

■ Design accord with human body engineering, to achieve the greatest degree of freedom of movement

■ Graphics display: directly and clearly show the fastening quality

■ Whatever the position and how a wireless connection, can obtain information

■ Rapid on-site parameter setting

NXP fastening machine pistol
Technical data
The scope of work [Nm] Maximum output speed [1/min] Tools installation The length of the installation[mm] Weight[kg] Code Order No.
3.6-12 880 ¼ Inch rapid
replacement  gasket		 295 1.35 NXP012QD-36V '1101001100256
CAD Drawing
STEP File name File size
0608842005_NXP012QD-36V.STP 28,153.8KB
0608843001_NX-BP36V.STP 24,767.5 KB
0608843002_NX-BC36V.STP 18,799.1 KB
0608843003_NXAMT.STP 2,811.0 KB
0608843004_NXPB.STP 337.1 KB
0608843008_NXPT.STP 2,040.4 KB
0608843009_NXPH.STP 902.7 KB


NXA angle tightening machine


■ With a small bend, accessibility is high

■ Graphics display: directly and clearly show the fastening quality

■ Whatever the position and how a wireless connection, can obtain information

■ Rapid on-site parameter setting
NXP fastening machine pistol
Technical data
The scope of work [Nm] Maximum output speed [1/min] Tool installation The length of the installation[mm] Weight[kg] Code Order No.
3.0 - 11 850 3/8 Inch square hole 505 1.63 NXA011S-36V 0608842011
3.0 - 15 600 NXA015S-36V 1101001100252
9.0 - 30 310 605 2.07 NXA030S-36V 1101001100253
15.0 - 50 185 NXA050S-36V 1101001100254
CAD Drawing
STEP File name File size
0608842001_NXA015S-36V.STP 64,728.8 KB
0608842002_NXA030S-36V.STP 67,341.7 KB
0608842003_NXA050S-36V.STP 67,341.7 KB
0608842006_NXA015S-36V-B.STP 64,728.8 KB
0608842007_NXA030S-36V-B.STP 67,341.7 KB
0608842008_NXA050S-36V-B.STP 67,341.7 KB
0608842011_NXA011S-36V.STP 64,728.8 KB
0608842012_NXA011S-36V-B.STP 64,728.8 KB
0608843001_NX-BP36V.STP 24,767.5 KB
0608843002_NX-BC36V.STP 18,799.1 KB
0608843003_NXAMT.STP 2,811.0 KB
0608843004_NXPB.STP  337.1 KB
0608843008_NXPT.STP 2,040.4 KB
0608843009_NXPH.STP 902.7 KB
Accessories
Simple charger
Code Order No.
NX-BC36V 0608843002
Slide type battery
Code Order No.
NX-BP36V 0608843001
A variety of color ring
Code Order No.
NX-R 0608843010
MicroSD card
Code Order No.
NX-SD 0608843005
Square wrench  nut holder
Code Order No.
ESAT 3608876626
Rotating suspension, suitable for angle tightening machine
Code Order No.
NXAMT 0608843003
Elbow fitting accessories
Code Order No.
ESWM NXA030S-36V, NXA050S-36V 3608876473
Programming adapter
Code Order No.
NX-A 0608843006
Access point
Code Order No.
NX-ACCESS 0608843007
