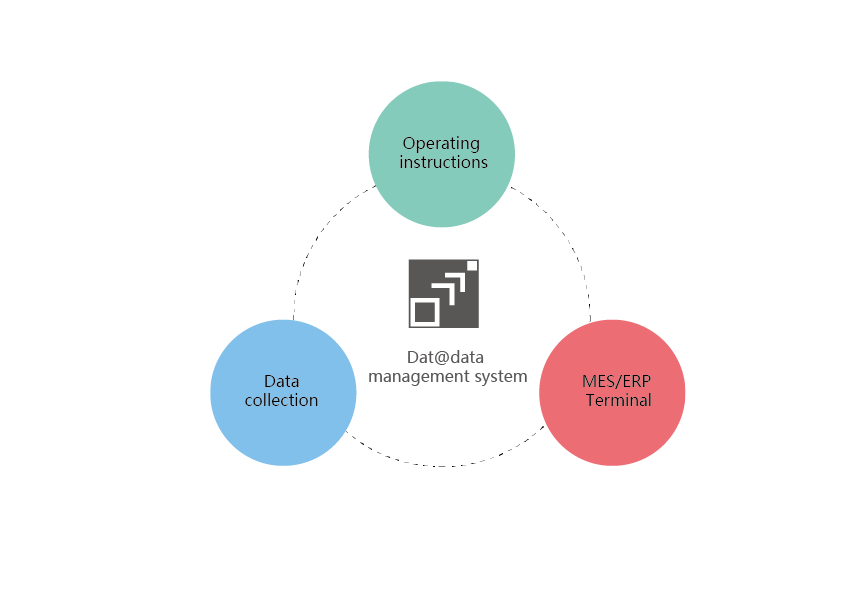

Dat@ data management system

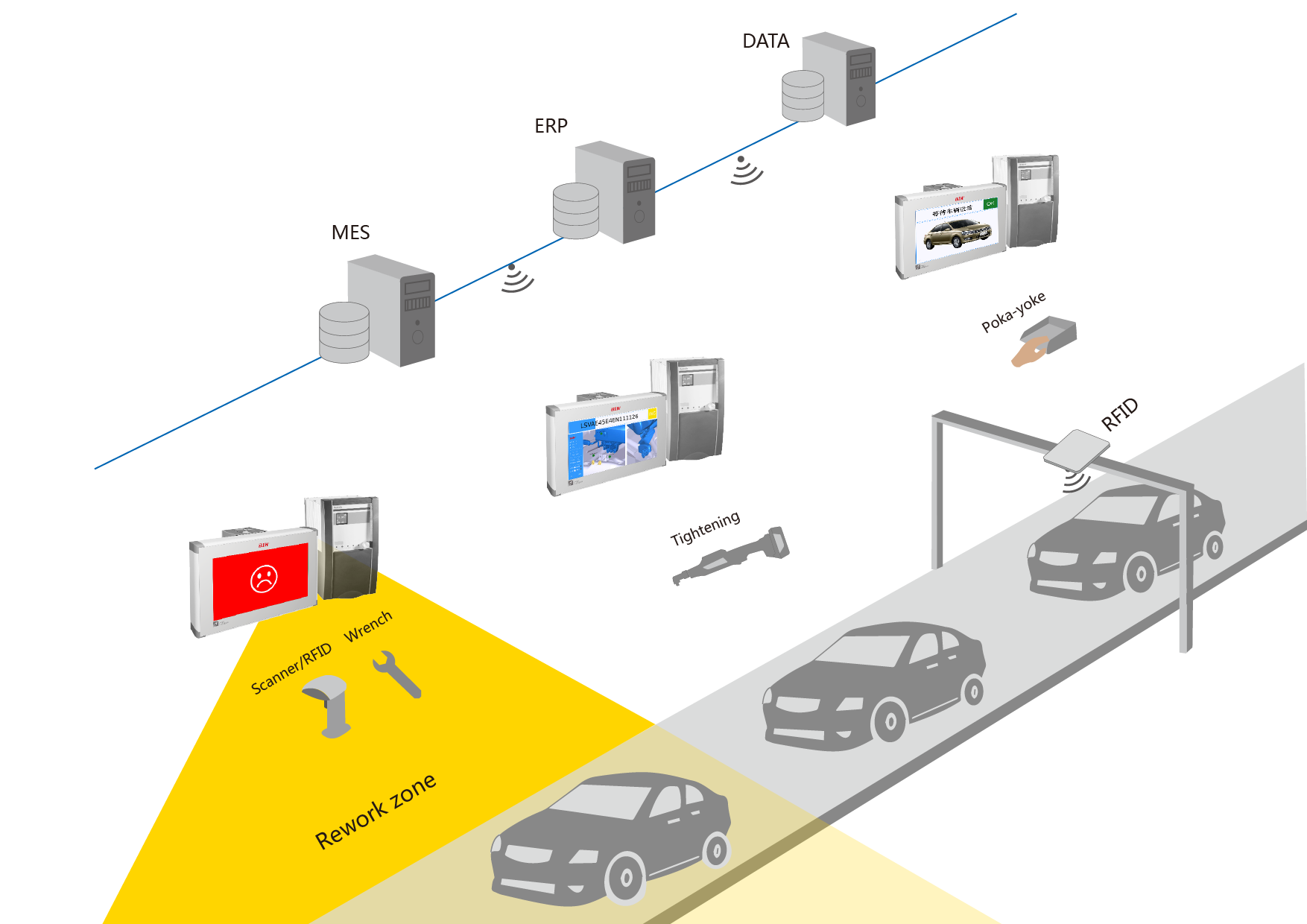

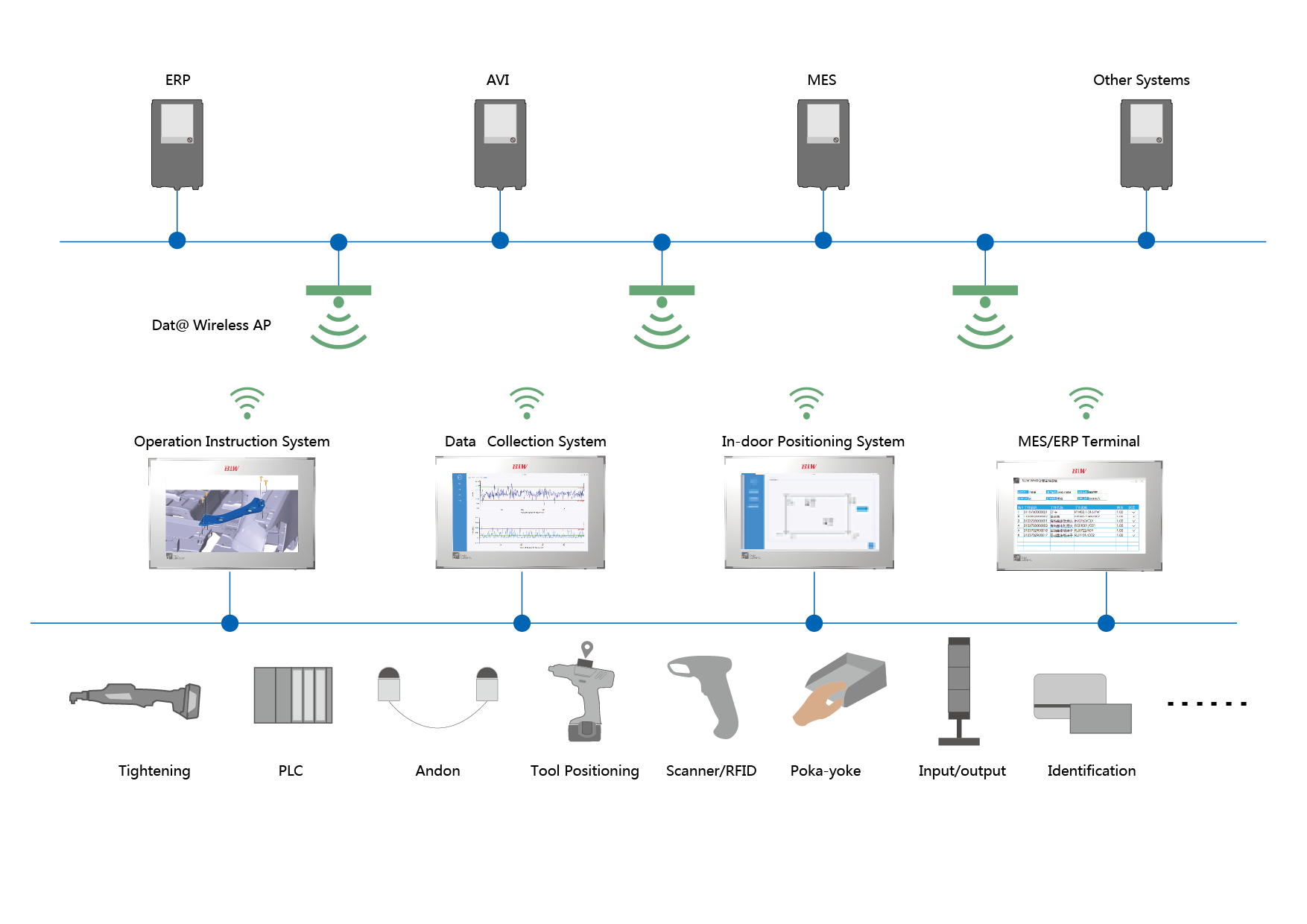

Dat@ data management system,is based on the Industry 4.0,with data collection、wireless transmission、energy analysis、operating instruction、in-door positioning、 poke-yoke、input&output、MES|ERP terminal etc......

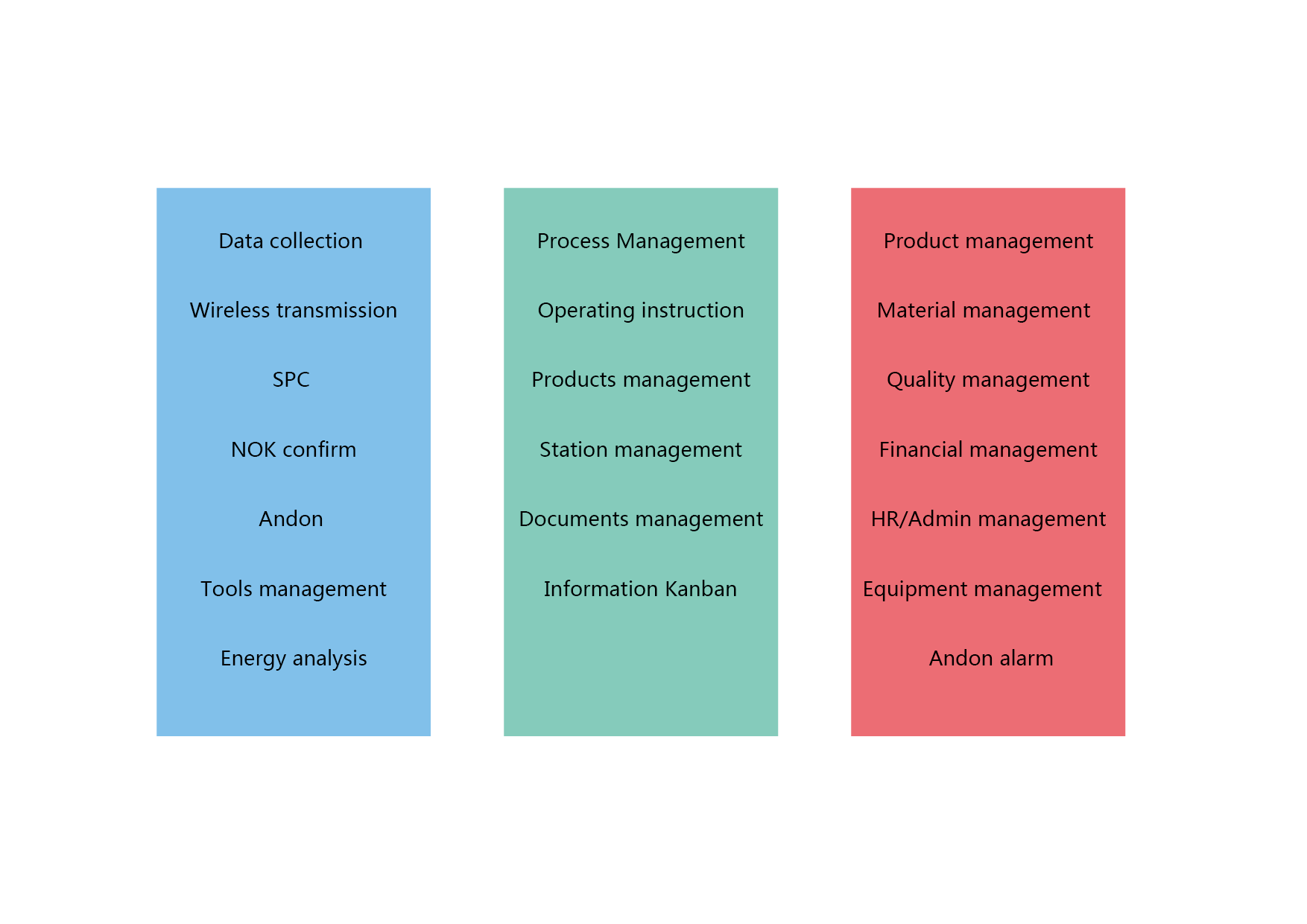

Function Module


■ Real-time data collection,and transmission to the remote server via wifi.

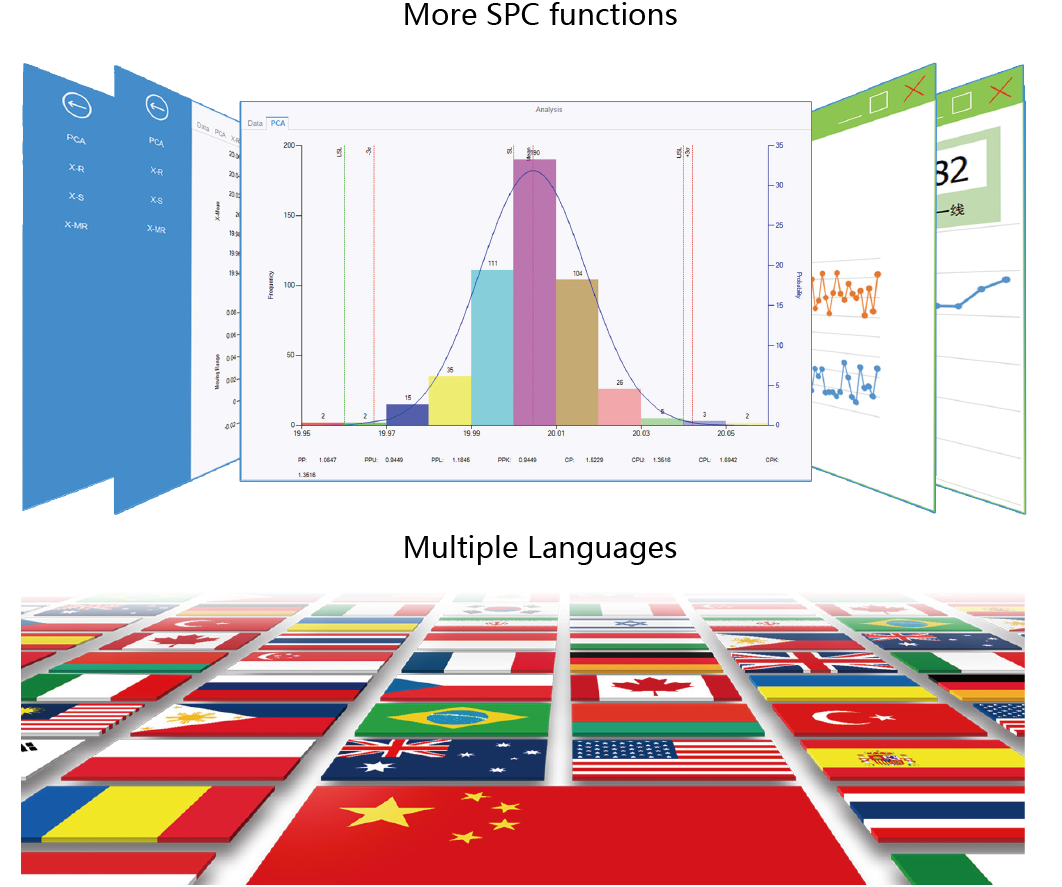

■ SPC function，NG confirm

■ Poka-yoke（procem/tool/companent）

■ Easy anembly of electrical interface

■ Easy assembly by standardized carrier seetion

■ Mucti-purpose concept for easy and quiek change of componens

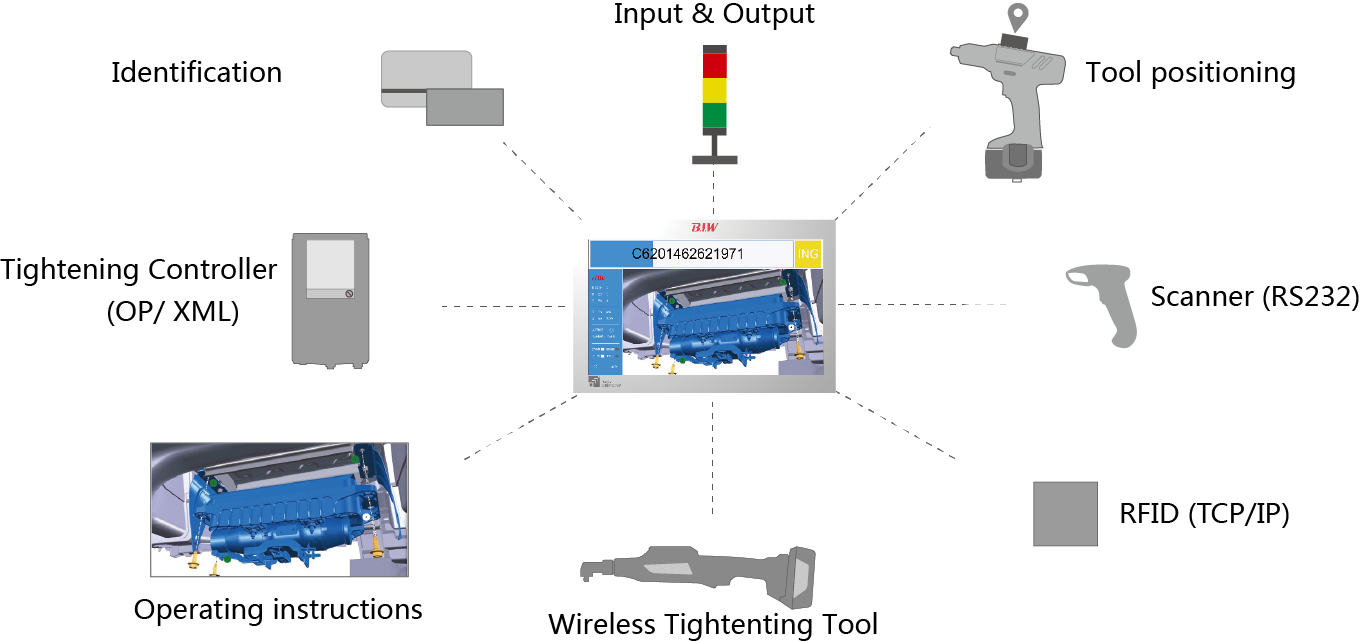

Interface Information

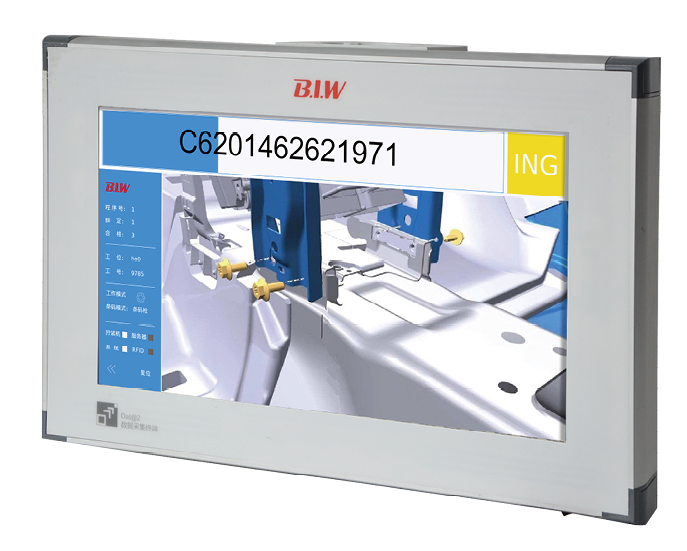

Technical data for Dta@

Supply Voltage：24VDC

Display：touch-screen 15"、19"、21"、27"、  33" optional

Battery life：30min

Interface：2 x RS232/422/485,16 x Input/Output,2 x Network RJ45,1 x HDMI

Wifi：2.4G/5G optional

Dimensions：W x M x D 441mm * 293mm * 51mm(15'display)

Weight：6.15Kg

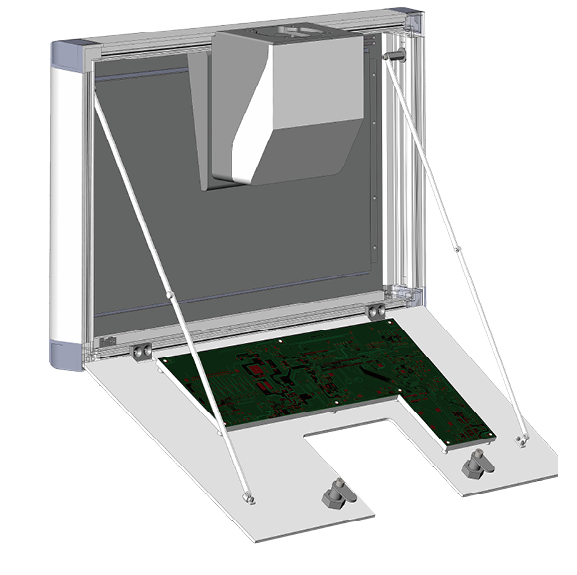

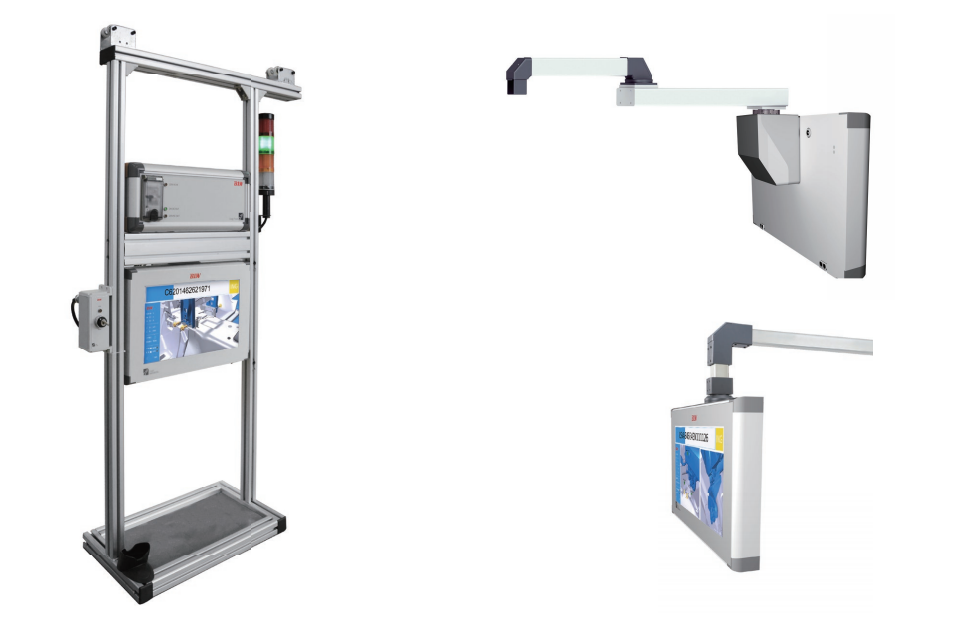

Easy assembly

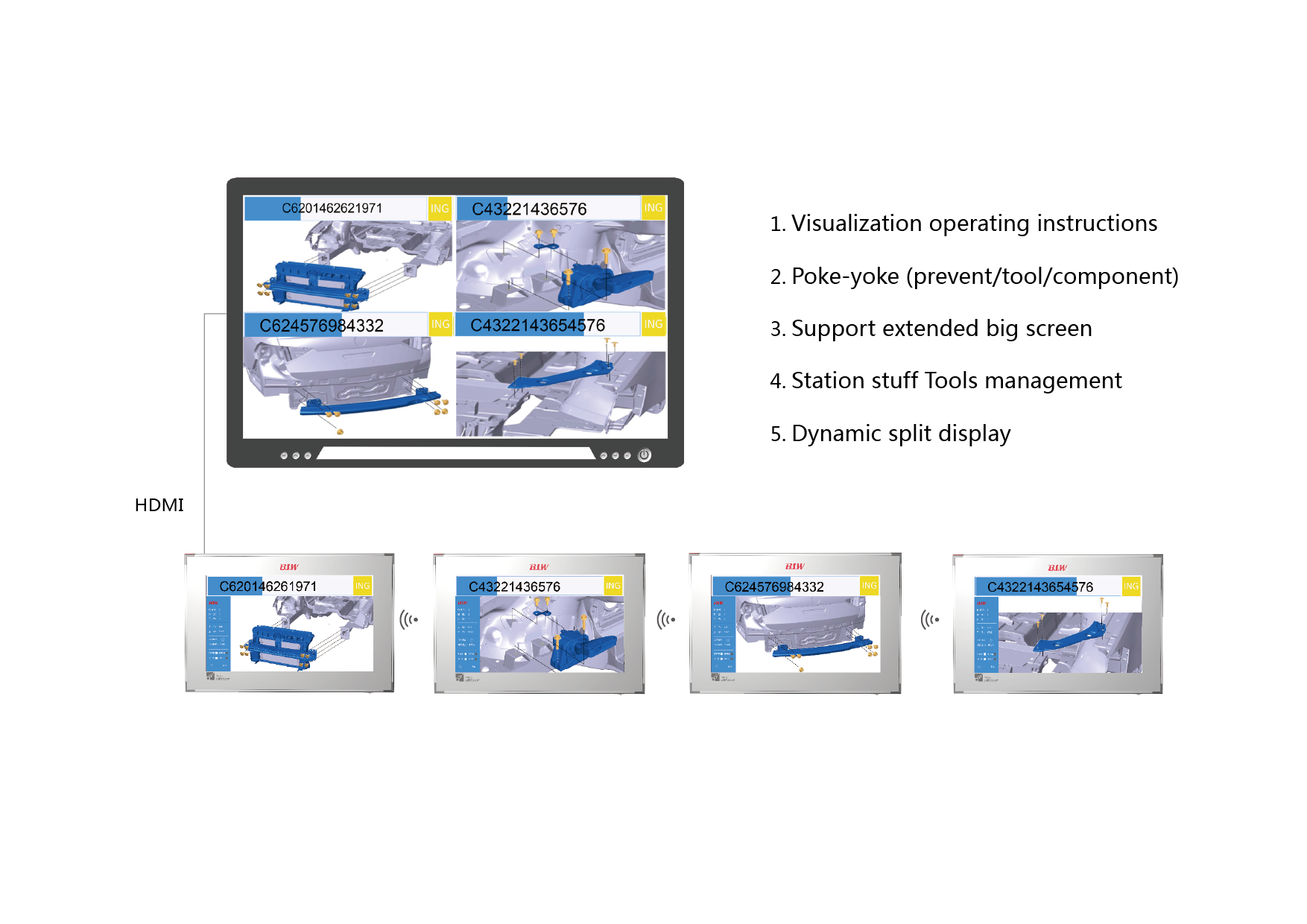

Operating instruction & Poke-yoke

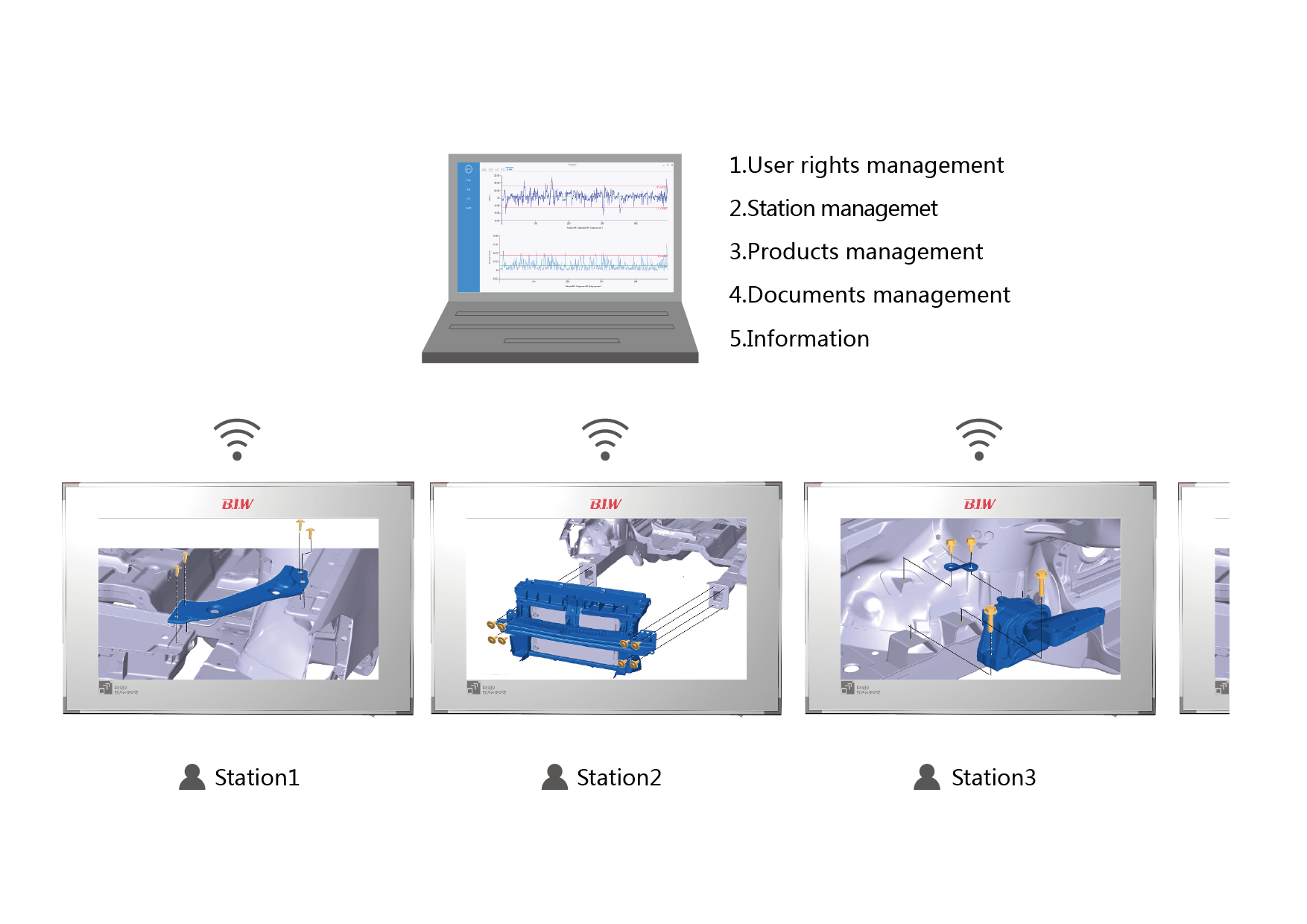

Dat@ operating instruction system try to achieve a paperless office,to reduce costs,improve corporate images,greatly improve production efficiency

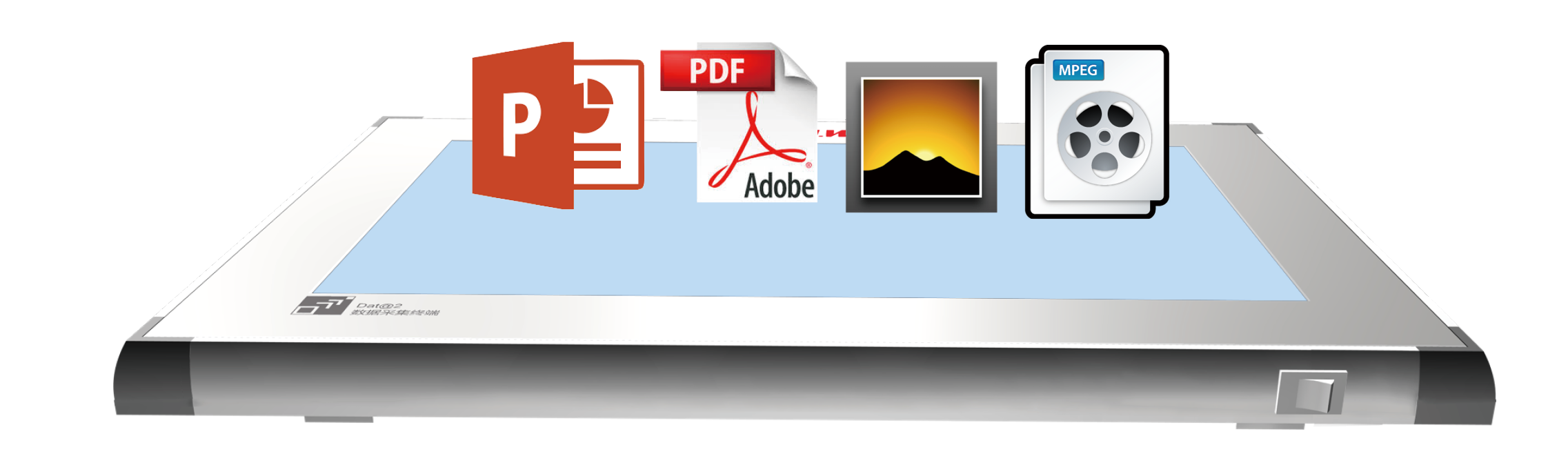

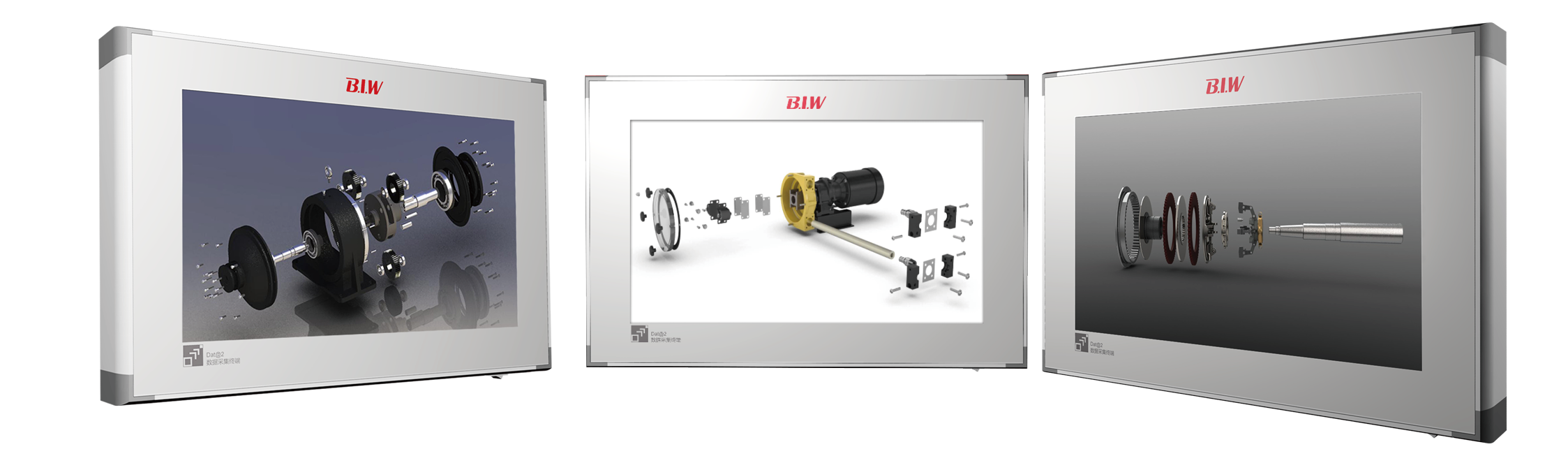

Diversified and personalized display

Support PDF.PPT.Images.movice

■ Real-time data collection,and transmission to the remote server via wifi.

■ SPC function，NG confirm

■ Poka-yoke（process/tool/companent）

■ Easy assembly of electrical interface

■ Easy assembly by standardized carrier seetion

■ Mucti-purpose concept for easy and quiek change of componens

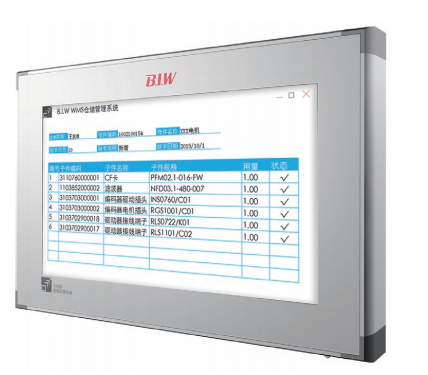

Dat@ MES/ERP Data Terminal

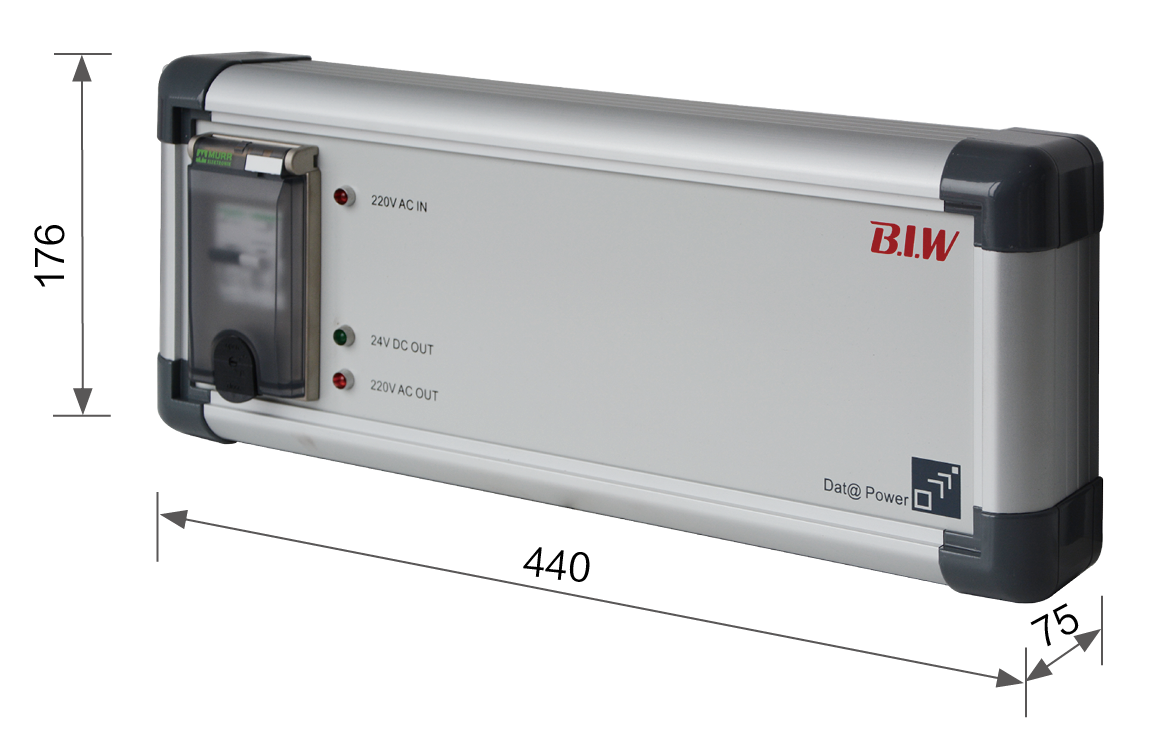

 Dat@ Power



Operating Voltage：220VAC

Output voltage：1 x 220VAC, 2 x 24VDC

DC output power：120W

Dimensions：440 x 176 x 75mm

Weight：5.25Kg

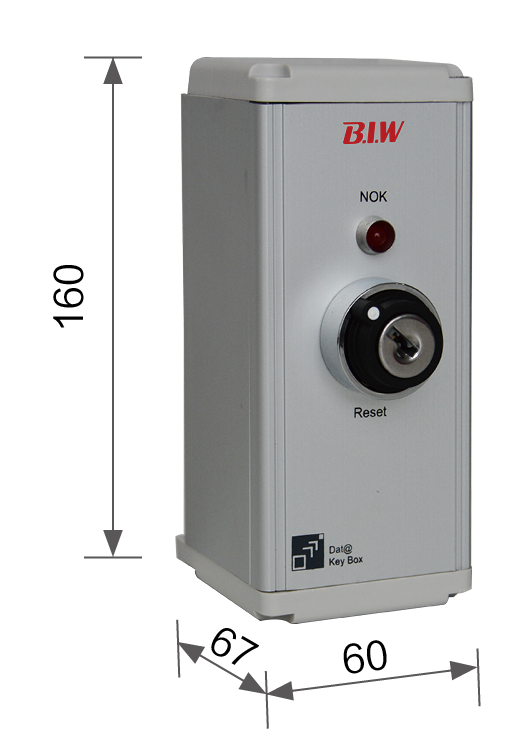

Dat@ Key Box

Operating Voltage：24VDC

Output voltage：1 x DB9, 1 x DB25, 1 x WS20-3

Dimensions：160 x 60 x 67mm

Weight：0.35Kg

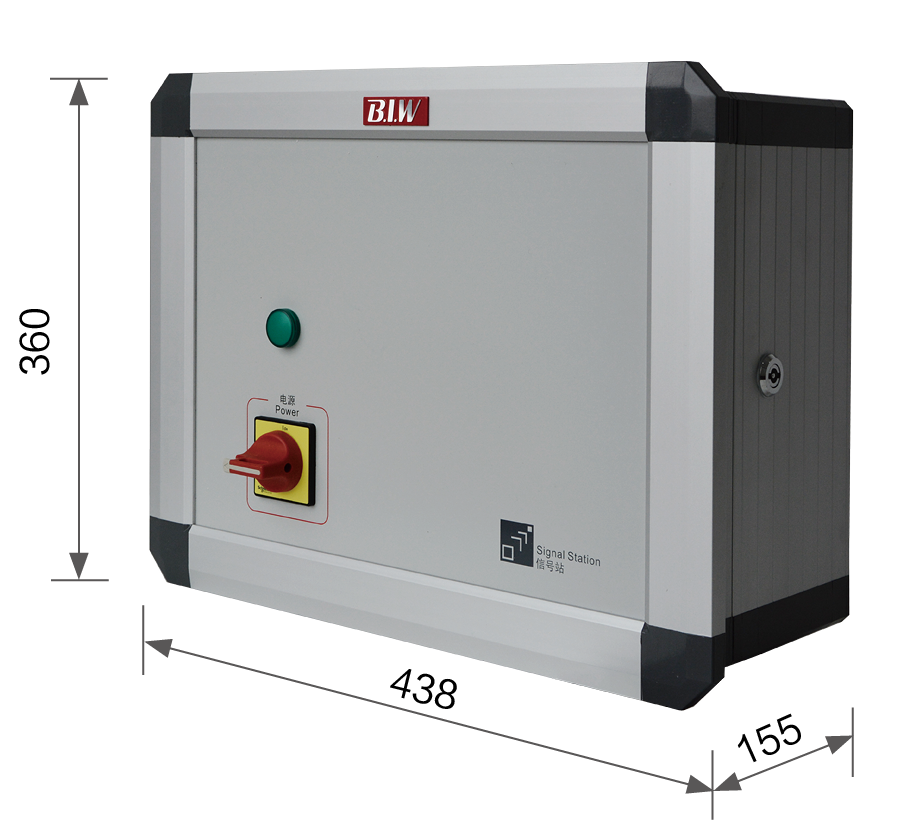

Dat@ Signal Station



Operating Voltage：220VAC

Protocol：Support IEEE 802.11 a/b/g/h/n

Network band：2.4G/5G

Transfer speed： 450Mbit/s

Dimensions：438 x 360 x 155mm

Weight：13.85Kg

Tightening control equipment
